Product Description

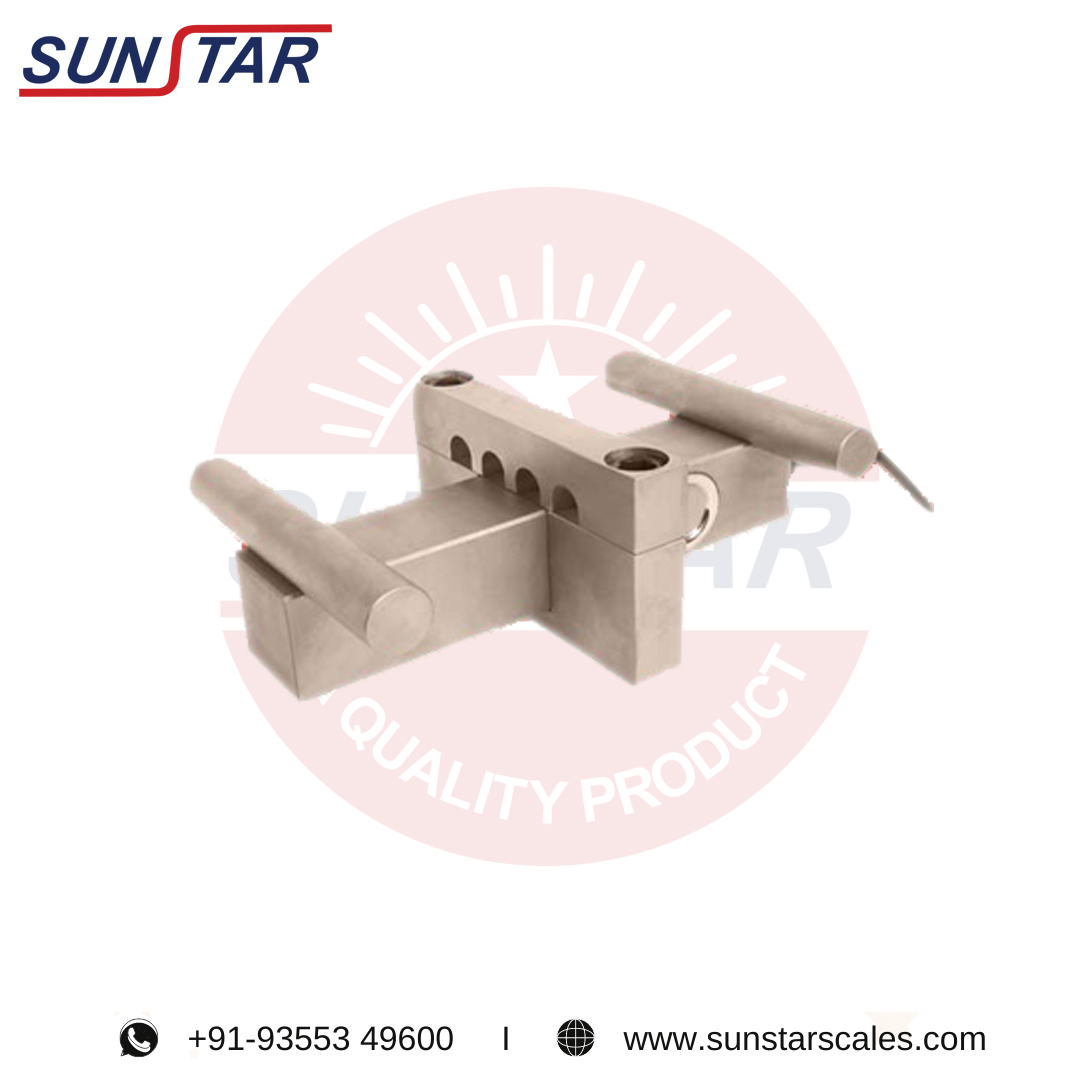

To meet the diversified requirements of our prestigious clients, we are engaged in offering Elevator Load Cells. Provided load cells are available in a wide variety of specifications as per the exact requirements of clients. These are manufactured as per international standards using the best quality raw material and sophisticated technology under the guidance of our expert team. In addition to this, clients can avail these load cells from us in customized options and at market leading prices.

Specifications:

Standard Capacities:- 80-Kgf

Excitation Voltage 10VDC-Max.:- 15VDC

Normal Output:- 2.0 mV/V

Non Linearity:- < ± 0.025% FSO

Hysteresis:- < ± 0.02% FSO

Non Repeatability:- < ± 0.01% FSO

Creep (30 minutes):- < ± 0.03% FSO

Zero balance:- ± 1.0% FSO

Input Resistance:- 400 ± 15 Ohms

Output Resistance:- 350 ± 5 Ohms

Insulation Resistance (50VDC):- > 1000 Mega Ohms

Cable Length (4 Core Screened):- 45Cm.

Safe Overload of Related Capacity:- 150%

Ultimate Overload of Rated Capacity:- 200%

Temp Compensated Range:- 0-60ºC

Temprature Effect on Output:- < 0.0015% FSO/ºC

Temprature Effect on Zero:- < 0.0020% FSO/ºC

Platter Size:- 300mm x 300mm

Eccentric Load Effect:- < 0.02% of FSO at 1/3 rated load placed within the specified sized platter

Deflection:- <0.5mm at FSO

Tightening Torque:- 2 m.Kg

Finish & Construction:- Alluminium Alloy

Environmental Protection Class:- lp65

Applications:- Bench, Counting Postal Scales, Check Weighers
